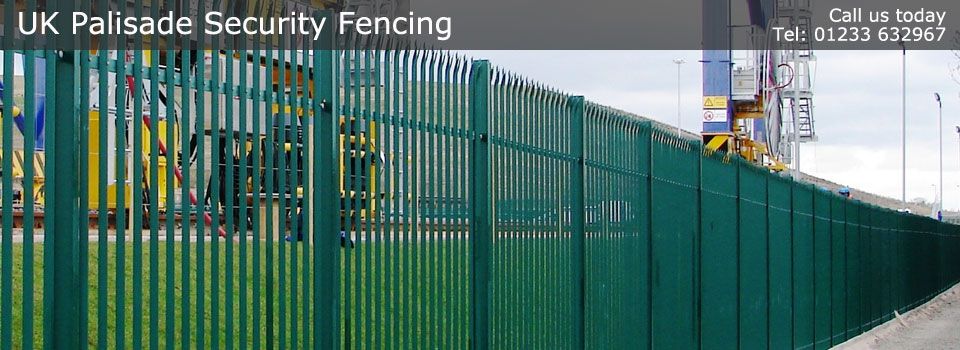

Premier Palisade
Premier Palisade provides a physical and visible deterrent against interuders. The versatile design can accommodateall site requirementswhich may include bespoke holepositions, three rail, extensions for barbed wire and extended pales for burying in the ground or concrete sills
Premier Palisade is manufactured in both the standard 'D' and 'W' profile in a variety of thicknesses. Available with tripple-pointed & splayed, rounded & notched, rounded and pointed tops. Panels are normally supplied lose for assembly on site in bays of 2.75m.
Features and Benefits
- Hot-dipped galvanized to BS EN ISO 1461:1999
- Premier Palisade is secure, robust and versatile
- Premier Palisade is easy to erect and repair
- No expensive equipment required should a damaged pale need to be replaced
- Premier Palisade is manufactured in the UK
Posts
Posts are generally 102 x 44 RSJ or 98 x 55 IPE - however, for a higher security installation 127 x 76 UB can be supplied. Posts can also be manufactured with base plates, wall fixings, expensions for barbed wire, cranked to go over walls or bespoke to meet te requirements of the site.
Fittings
To fix the pales to the rails two types of fixings are available. Rivets and collars (M6 and M8) for which a fencing rivet gun is required or M8 bolts with Permacone fixings, designed to snap off during erection for a secure fixing.
Pales
The pales are manufactured in two profiles 'D' and 'W' and in a range of styles. See specification table for recommended pale thicknesses:
Rails
Rails are available in four sizes, 40 x 40, 45 x 45, 50 x 50 and 65 x 50. The size of the rail is dependant on height of palisade fence and level of security required.
Gates
Palisade gates are manufactured from rolled hollow section and clad with pales to match the palisade fencing. Gates can be manufactured to any size from 0.9m to 16m, to the relevant British Standards or to meet the requirements of the site
Finishes
Palisade fencing can be supplied self-coloured, galvanised or galvanised & polyester powder-coated in virtually any colour to order.
Premier Palisade Specification Chart
| Height |
Post Langth |
Rail |
Pale Length |
Footrest |
| 1000mm |
1450mm |
40 x 40 |
950mm |
1 |
| 1200mm |
1650mm |
40 x 40 |
1150mm |
1 |
| 1500mm |
1925mm |
40 x 40 |
1450mm |
1 |
| 1800mm |
2325mm |
40 x 40 |
1750mm |
1 |
| 2000mm |
2590mm |
40 X 40 |
1950mm |
1 |
| 2100mm |
2725mm |
45 x 45 |
2050mm |
2 |
| 2400mm |
3125mm |
45 x 45 |
2350mm |
2 |
| 2750mm |
3500mm |
50 x 50 |
2700mm |
2 |
| 3000mm |
3925mm |
50 x 50 |
2950mm |
2 |
| 3600mm |
4725mm |
50 x 50 |
3550mm |
2 |
Pale Thickness Specification
| Profile |
General |
Industrial |
Security |
| 'W' |
2.0mm |
2.5mm |
3.0mm |
| 'D' |
3.0mm |
3.5mm |
4.0mm |
If you require any further information or you would like a quotation, please do not hesitate to contact us on 01233 632967
