Pedestrian Barriers
Pedestrian barriers are an indispensable element of any country’s infrastructure; most roads and pavements require proper safety measures such as barriers for those that are walking, especially roads near schools and highly-congested city roads. In addition to our wide range of fencing products, we are thrilled to offer safety barriers, pedestrian barriers, crowd barriers, among others. Not only have our products proven to be effective in various road systems – they are made to last. In service they will certainly stand the test of time.
Premier Pedestrian barriers are available in a wide range of specifications to suit all site conditions. Pedestrian barriers are generally 2.0m long and 1.05m in height with the framework constructed from 50 x 30mm rectangular hollow section. Infill panels, in-line or angled, are designed to provide road users the best view of traffic and pedestrian movement.
Panels can be manufactured to a radius to meet the requirements of site and are hot dip galvanised to BS EN ISO 1461:1999 after manufacture
What Are They Made From
Premier Pedestrian barriers are available in a wide range of specifications to suit all site conditions. Pedestrian barriers are generally 2.0m long and 1.05m in height with a framework constructed from 50 x 30mm rectangular hollow section. Our fill panels, in-line panels and angled panels are designed to provide both drivers and on-site workers the best possible view of traffic and pedestrian movement.
A range of infill panels can be manufactured from 12 – 22mm diameter bar and from 13mm square sections to ensure good visibility through the barriers. The suggested specifications are for general purpose barriers, and can be changed to meet specific site conditions
What Are They Used For
Road safety barriers are a popular sight in any town in the UK. Roads are reassessed and rebuilt everyday day in this country, and the use of pavements necessitates the inclusion of safety barriers for pedestrians, especially for use around schools and other areas where the young and old might be. Contact us today to learn more about how we can implement our safety barriers in your project.
Features and Benefits
- Product has long life expectancy in service
- Made to suit any site conditions
- Extensive stocks are available for immediate nationwide despatch on Premier Fencing transport with crane offloading

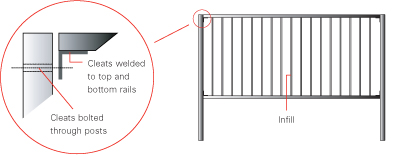

Barrier Configuration
PeartPedestrian barriers are available in a range of configurations:
| Pattern one Infill panel from 12 – 22mm diameter bar. Barrier supplied fully welded |
 |
| Pattern two Infill panel from 25 x 25mm rolled hollow section. Barrier supplied fully welded |
 |
| Pattern three Infill panel from 12 – 22mm diameter bar. Barrier supplied fully welded |
 |
| Pattern four Infill panel from 12 – 22mm diameter bar. Barrier supplied in kit form for assembly on site |
 |
Patterns
And with a range of infill patterns:
 |
| Standard infill |
 |
| Staggered infill, type X |
 |
| Staggered infill, type Y |
 |
| Staggered infill, type Z |
A range of infill panels can be manufactured from 12 – 22mm diameter bar and from 13mm square section to ensure good visability through the barriers. Specifications suggested are for general purpose barriers and can be changed to meet specific site conditions
If you require any further information or you would like a quotation, please do not hesitate to contact us on 01233 632967.
